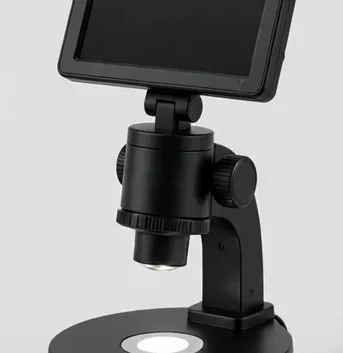

MicroHub ViewPro 7" LCD Digital Microscope

Overview

The ViewPro 7 is the size most benches settle on: the 7-inch IPS screen is large enough to share the view with a second person, and the 178-degree viewing angle keeps the image readable from the side. Eight LEDs around the lens handle surface work such as coins and solder joints, while the illuminated base supports slides and thin specimens. Use the included remote to capture photos without touching the stand and shaking the image. Stills and video record to microSD, and a USB connection mirrors the view to a Windows or Mac computer for measurement software and larger displays.

Key benefits

• Built-in screen — 7-inch IPS LCD, 178° viewing angle. Start viewing immediately, with no computer, phone or app to set up first.
• Image capture — 1080p Full HD photo and video capture. Save stills and video for records, teaching, listings or customer documentation.
• Working distance — Approx. 0.8–4 in (20–100 mm). The clearance under the lens decides whether hands and tools fit — this model publishes the figure.
• Focus — Manual focus wheel; remote shutter for capture.
• Lighting — 8 adjustable lens LEDs + transmitted LED base light.

Technical specifications

Magnification, explained honestly

For this model the published figure is: 50x–1200x (optical working range with digital zoom; digital zoom enlarges the image and does not add resolution).

Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. MicroHub publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.

Working distance, screen & output

The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.

What’s in the box

• ViewPro 7 microscope
• Aluminum stand
• Wireless remote
• USB-C cable
• Quick-start guide

Compatibility & power

Works with Windows and Mac as a standard USB camera; remote pairs out of the box.

Power: Rechargeable battery (approx. 2 hrs) or USB power.

Who should buy this model — and who should not

Compare with alternatives

MicroHub ViewPro 4.3" LCD Digital Microscope
Compact 1080p screen microscope for coins, crafts and first bench work
$35.00 less than this model · Screen: 4.3-inch LCD · Working distance 0.6–3.5 in

$44.99

View

MicroHub ViewPro 10.1" LCD Digital Microscope
Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
$90.00 more than this model · Screen: 10.1-inch IPS LCD · Outputs: HDMI, USB · Working distance 0.4–6 in

$169.99

View

MicroHub CoinView 7" Coin Microscope
Whole-coin view on screen, with HDMI for closer die and mint-mark study
$40.00 more than this model · Screen: 7-inch LCD · Outputs: HDMI, USB · Working distance 0.4–5.5 in

$119.99

View

Open the full comparison tool

Shipping, returns & warranty

Confirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).
