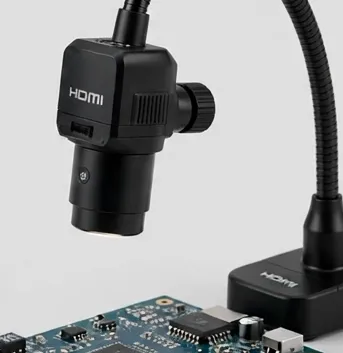

4K HDMI camera microscope on a flex arm — autofocus keeps joints sharp while you work
MicroHub BenchHD 4K Autofocus Soldering Microscope
Overview
Soldering under a microscope fails when the stand crowds your hands or the image lags. The BenchHD 4K answers both: the camera head rides a flexible arm you swing in and out, the working distance is long enough for an iron and hot-air nozzle, and autofocus keeps the joint sharp as the board moves. Magnification here is optical through a continuous-zoom lens — the honest figure for work, roughly 10x–280x on a 24-inch monitor. The 4K HDMI feed has the low latency rework demands, and measurement overlays help document pad and trace dimensions for QC records.
Key benefits
- HDMI output. A live image on any monitor or TV — built for shared viewing, teaching and bench work.
- Image capture — 4K UHD camera (3840×2160) HDMI; 1080p recording. Save stills and video for records, teaching, listings or customer documentation.
- Working distance — Approx. 3.5–8 in (90–200 mm). The clearance under the lens decides whether hands and tools fit — this model publishes the figure.
- Focus — Autofocus with manual override.
- Lighting — Adjustable LED ring light (included).
Technical specifications
| Compatibility | Windows 10/11, macOS 11+; any HDMI monitor |
|---|---|
| Focus | Autofocus with manual override |
| Lighting | Adjustable LED ring light (included) |
| Magnification | Approx. 10x–280x optical zoom (on a 24-inch monitor) |
| Outputs | HDMI, USB-C (UVC) to PC/Mac |
| Power | AC adapter (included) |
| Screen | None built in — HDMI output to your monitor |
| Sensor / Resolution | 4K UHD camera (3840×2160) HDMI; 1080p recording |
| Stand / Mount | Flexible gooseneck arm with heavy bench base; camera head tilts |
| Working distance | Approx. 3.5–8 in (90–200 mm) |
Magnification, explained honestly
For this model the published figure is: Approx. 10x–280x optical zoom (on a 24-inch monitor).
Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. MicroHub publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.
Working distance, screen & output
| Working distance | Approx. 3.5–8 in (90–200 mm) |
|---|---|
| Screen | None built in — HDMI output to your monitor |
| Sensor / Resolution | 4K UHD camera (3840×2160) HDMI; 1080p recording |
| Outputs | HDMI, USB-C (UVC) to PC/Mac |
| Lighting | Adjustable LED ring light (included) |
| Focus | Autofocus with manual override |
| Stand / Mount | Flexible gooseneck arm with heavy bench base; camera head tilts |
The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.
What’s in the box
- BenchHD 4K camera head
- Continuous-zoom lens
- Flex arm and bench base
- LED ring light
- HDMI cable
- Remote control
- Power adapter
- Quick-start guide
Compatibility & power
Any HDMI monitor for live view; USB UVC for Windows and Mac capture and measurement software.
Power: AC adapter (included).
Who should buy this model — and who should not
Buy this model if…
Your work is electronics repair & pcb soldering, mobile phone repair, industrial quality control, and the specifications above — magnification, working distance, outputs and lighting — fit how you actually work. It is a professional-level instrument at a market-rate price of $289.99.
Choose a different model if…
- You want to view without an eyepiece or an external monitor — choose a model with a built-in LCD screen, such as the MicroHub ViewPro 4.3" LCD Digital Microscope.
Compare with alternatives
MicroHub ViewPro 4.3" LCD Digital Microscope
Compact 1080p screen microscope for coins, crafts and first bench work
$245.00 less than this model · Screen: 4.3-inch LCD · Outputs: USB · Working distance 0.6–3.5 in
Compact 1080p screen microscope for coins, crafts and first bench work
$245.00 less than this model · Screen: 4.3-inch LCD · Outputs: USB · Working distance 0.6–3.5 in
$44.99
View
MicroHub ViewPro 7" LCD Digital Microscope
The all-round bench microscope: 7-inch screen, 1080p, LED base
$210.00 less than this model · Screen: 7-inch IPS LCD · Outputs: USB · Working distance 0.8–4 in
The all-round bench microscope: 7-inch screen, 1080p, LED base
$210.00 less than this model · Screen: 7-inch IPS LCD · Outputs: USB · Working distance 0.8–4 in
$79.99
View
MicroHub ViewPro 10.1" LCD Digital Microscope
Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
$120.00 less than this model · Screen: 10.1-inch IPS LCD · Working distance 0.4–6 in
Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
$120.00 less than this model · Screen: 10.1-inch IPS LCD · Working distance 0.4–6 in
$169.99
ViewShipping, returns & warranty
Confirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).
Frequently asked questions
What magnification does the MicroHub BenchHD 4K Autofocus Soldering Microscope really deliver?
Approx. 10x–280x optical zoom (on a 24-inch monitor). The figure is optical, produced by the lens system itself.
What is included with the MicroHub BenchHD 4K Autofocus Soldering Microscope?
In the box: BenchHD 4K camera head; Continuous-zoom lens; Flex arm and bench base; LED ring light; HDMI cable; Remote control; Power adapter; Quick-start guide. Any HDMI monitor for live view; USB UVC for Windows and Mac capture and measurement software.
How do I order the MicroHub BenchHD 4K Autofocus Soldering Microscope, and how do returns work?
Checkout creates an order reference and an order email; we reply with confirmation and payment instructions — payment is not processed online yet. Unused items in original condition can be returned within 30 days, and the store's 12-month warranty covers defects in materials and workmanship.
