Teach and record at once: trinocular head with a 5MP USB camera included

MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera

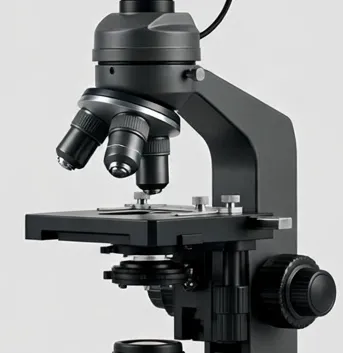

MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera — Teach and record at once: trinocular head with a 5MP USB camera includedDetail view of the MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP CameraMicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera in use

Overview

The third port on a trinocular head is what turns a microscope into a teaching and documentation tool. The LabTrino includes a 5MP USB camera that mounts on that port, so one person can focus through the binocular eyepieces while a room watches on a projector, and stills and measurements save straight to the computer. Optical magnification is 40x–1000x from plan-achromatic objectives. The camera software supports Windows and Mac and includes basic measurement after calibration with a stage micrometer (sold separately). An education and research-support instrument — not a clinical diagnostic device.

Key benefits

  • Direct optical viewing. An eyepiece image with no screen lag — what you see is the specimen itself, not a rendering of it.
  • Focus — Coaxial coarse and fine focus.
  • Lighting — LED transmitted light, variable brightness (Köhler-ready field diaphragm).

Technical specifications

Camera5MP USB 2.0 camera included, photo and video
CompatibilityWindows 10/11, macOS 11+ (camera software included)
CondenserAbbe NA 1.25, iris diaphragm
FocusCoaxial coarse and fine focus
HeadTrinocular, binocular viewing + camera port
LightingLED transmitted light, variable brightness (Köhler-ready field diaphragm)
Magnification40x–1000x optical (10x eyepieces × 4x/10x/40x/100x objectives)
ObjectivesPlan achromatic 4x, 10x, 40x (spring), 100x (spring, oil)
PowerAC adapter (included)
StageDouble-layer mechanical stage

Magnification, explained honestly

For this model the published figure is: 40x–1000x optical (10x eyepieces × 4x/10x/40x/100x objectives).

Two different things get called “magnification”. Optical magnification is produced by the lens system and carries real detail. Digital zoom enlarges the captured image on screen — the picture gets bigger, but no new detail appears, because the sensor captured a fixed amount of information. MicroHub publishes the derivation with every figure; where a headline number mixes the two, the optical range is the one to compare between models.

Working distance, screen & output

OutputsUSB
LightingLED transmitted light, variable brightness (Köhler-ready field diaphragm)
FocusCoaxial coarse and fine focus

The working distance is the clearance between lens and subject — the space your hands and tools actually get. Screen and output decide who can watch: a built-in LCD for one pair of eyes at the bench, HDMI for a room, USB for capture and measurement.

What’s in the box

  • LabTrino microscope
  • 5MP USB camera with C-mount adapter
  • 10x eyepiece pair
  • Immersion oil
  • Dust cover
  • Software download card
  • User manual

Compatibility & power

Camera works with Windows and Mac; calibration slide recommended for measurement.

Power: AC adapter (included).

Who should buy this model — and who should not

Buy this model if…

Your work is laboratory research, school science & stem, and the specifications above — magnification, outputs and lighting — fit how you actually work. It is a professional-level instrument at a market-rate price of $399.99.

Choose a different model if…

Compare with alternatives

MicroHub ViewPro 4.3" LCD Digital Microscope — Compact 1080p screen microscope for coins, crafts and first bench work
MicroHub ViewPro 4.3" LCD Digital Microscope
Compact 1080p screen microscope for coins, crafts and first bench work
$355.00 less than this model · Screen: 4.3-inch LCD · Working distance 0.6–3.5 in

$44.99

View
MicroHub ViewPro 7" LCD Digital Microscope — The all-round bench microscope: 7-inch screen, 1080p, LED base
MicroHub ViewPro 7" LCD Digital Microscope
The all-round bench microscope: 7-inch screen, 1080p, LED base
$320.00 less than this model · Screen: 7-inch IPS LCD · Working distance 0.8–4 in

$79.99

View
MicroHub ViewPro 10.1" LCD Digital Microscope — Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
MicroHub ViewPro 10.1" LCD Digital Microscope
Big-screen 10.1-inch microscope with HDMI output for teaching and shared viewing
$230.00 less than this model · Screen: 10.1-inch IPS LCD · Outputs: HDMI, USB · Working distance 0.4–6 in

$169.99

View

Open the full comparison tool

Shipping, returns & warranty

Confirmed orders are prepared for dispatch within 2 business days, with standard US delivery typically in 3–7 business days after dispatch and tracking by email (shipping policy). Unused items in original condition can be returned within 30 days (returns & refunds). A 12-month warranty covers defects in materials and workmanship (warranty policy).

Frequently asked questions

What magnification does the MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera really deliver?

40x–1000x optical (10x eyepieces × 4x/10x/40x/100x objectives). The figure is optical, produced by the lens system itself.

What is included with the MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera?

In the box: LabTrino microscope; 5MP USB camera with C-mount adapter; 10x eyepiece pair; Immersion oil; Dust cover; Software download card; User manual. Camera works with Windows and Mac; calibration slide recommended for measurement.

How do I order the MicroHub LabTrino 40x–1000x Trinocular Microscope with 5MP Camera, and how do returns work?

Checkout creates an order reference and an order email; we reply with confirmation and payment instructions — payment is not processed online yet. Unused items in original condition can be returned within 30 days, and the store's 12-month warranty covers defects in materials and workmanship.
